In Line Table Switch Black PLU27656

In Line Table Switch Black PLU27656

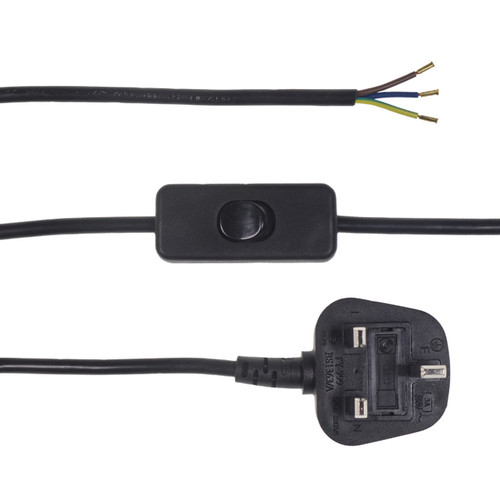

The In Line Table Switch Black PLU27656 is designed to be added to the flex of a table lamp allowing the user to easily turn on/off their light fitting. The table lamp switch has a terminal for the Neutral wire and the Earth wire with the Live being connected to the switch part. There is a cord grip in each end of the In Line Switch in order to grip the flex and prevent the wires from being pulled out of the terminals.

The inline table switch comes in 2 different finishes (Black or White) and can be combined with a matching cable and plug top.

Spec:

• Length: 62mm
• Width: 24mm
• Depth: 18mm
• 1A @ 240V
• 2A @ 110V

The In Line Table Switch Black PLU27656 has a snap together case. To open the cover insert a small screwdriver in the small slot just below the cord grip at one end of the switch and leaver the back off. Then do the same in the other end. To close the cover just snap the back onto the body.

Below is a quick video on how to open the case on the switch.
